ЗУ 110/40

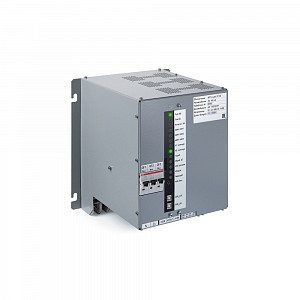

SB charger system. ВПТС.426471.118.
SB charger system
SB (storage batteries) qualitative charge
SB controlled discharge
SB parameters monitoring
SB keeping in ultimate modes
(deep discharge, overheating, etc.)
SB charger system
SB (storage batteries) qualitative charge
SB controlled discharge
SB parameters monitoring
SB keeping in ultimate modes
(deep discharge, overheating, etc.)
Purpose
- DC and AC electric trains
- Diesel locomotives
- Passenger cars
- Subway cars
- Public transport
- For SB STARK 9-АГНГ(В) 12 120М-В, VRLA 24В and 100В, КGL60Р, 56КGL125Р and their equivalents.
Key features
- Reliable, modular, redundant design scheme. Simple adaptation of the customer-specific design
- Microprocessor control system
- Quick setup using a software utility for specific batteries
- Battery parameters registration in non-volatile memory
- Registration of not only the battery charge current, but also the discharge current
- Low internal consumption at idle
- Full compatibility with the system of advanced diagnostics of the electric train
- A typical range of pre-set factory charge profiles adapted to specific batteries used on rolling stock
- Low charge voltage and current ripple factor
- Rolling stock mechanical and climatic design
- Battery protection against deep discharge
- Battery overheating protection
- Full-scale indicating system
- Modern and convenient combined sensor for measurement of battery current and temperature
- Function of emergency power on from the discharged battery to start the electric train
- Before being sent to the customer, the charger goes through a full cycle of factory tests
- The solution has been developed on the rolling stock of Russian Railways
Specifications
- Storage charge method — IU as per DIN 41773
- Storage charge voltage temperature compensation
- Storage condition indication: “Low battery charge” (“АКБ разряжена”)
- Battery protection contactor condition indication: “Battery is closed” (“КБ замкнут”)
Technical specifications
| Name | Value |
|---|---|
| Supply voltage | 110 ± 33 V |
| SB charger system | Ug … 133 ± 2 V |
| Maximum output current (Iout), max | |
| ЗУ 110/40 (5 design options) | 40, 50, 166 ± 1 A |
| Setting for limitation of the storage maximum charge current, adjustable | 40, 50, 166 ± 1 A |
| Current through temperature and current sensor: | |
| Long-term | ±50 А |
| Maximum, measurable | ±60 А |
| Maximum surge current (1s, duty cycle 1%) | ±600 А |
| Built-in limitation of the charger starting current, max | 3 ± 1 А |
| Work readiness time, max | 10 s |
| Battery protection setting when discharging, adjustable | 0..145 ± 2 V |
| Setting for switching on the "Low battery charge" (“АКБ разряж.”) indication, adjustable | 0..145 ± 2 V |
| Voltage ripple factor on a resistive load, conversion frequency max | ±0.8% |
| Time for single connection of the deeply discharged battery by pressing the “SB ON” (“ВКЛ. АКБ”) button | 10 min. |
| Temperature sensor break indication | Available |
| Charge mode indication | Available |
| Battery protection contactor status indication | Available |
| Alarm indication | Available |
| Internal power modules operation indication | Available |
| Real time clock parameters registration: | Available |
| Supply voltage Ug | |
| Battery voltage Ub | |
| I battery charge/discharge | |
| Battery temperature | |
| Inside article temperature | |
| Article contactors condition | |
| “SB ON” (“ВКЛ.АКБ”) button condition | |
| Charger emergency protection against overheating | Available |
| Power input/output short circuit current protection | Available |
| Operating temperature | -50 °С to +50 °С |
| Service life | 20 years |
| Protection level | IP20 |
| Unit weight, max (5 versions) | 14, 16, 18 ± 0.2 kg |
| Overall dimensions (HxWxD) | 321 x 270 x 283 |
| Structural design category | М25 |
